Foldaside 640

SKU FOLDASIDE-640

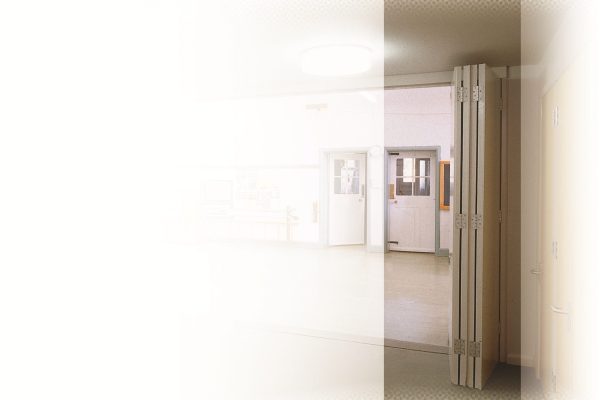

Foldaside 640 is a bottom rolling folding system for internal folding doors. Suitable for openings without rebated head or cills.  For hospitals, schools, etc.

Overview

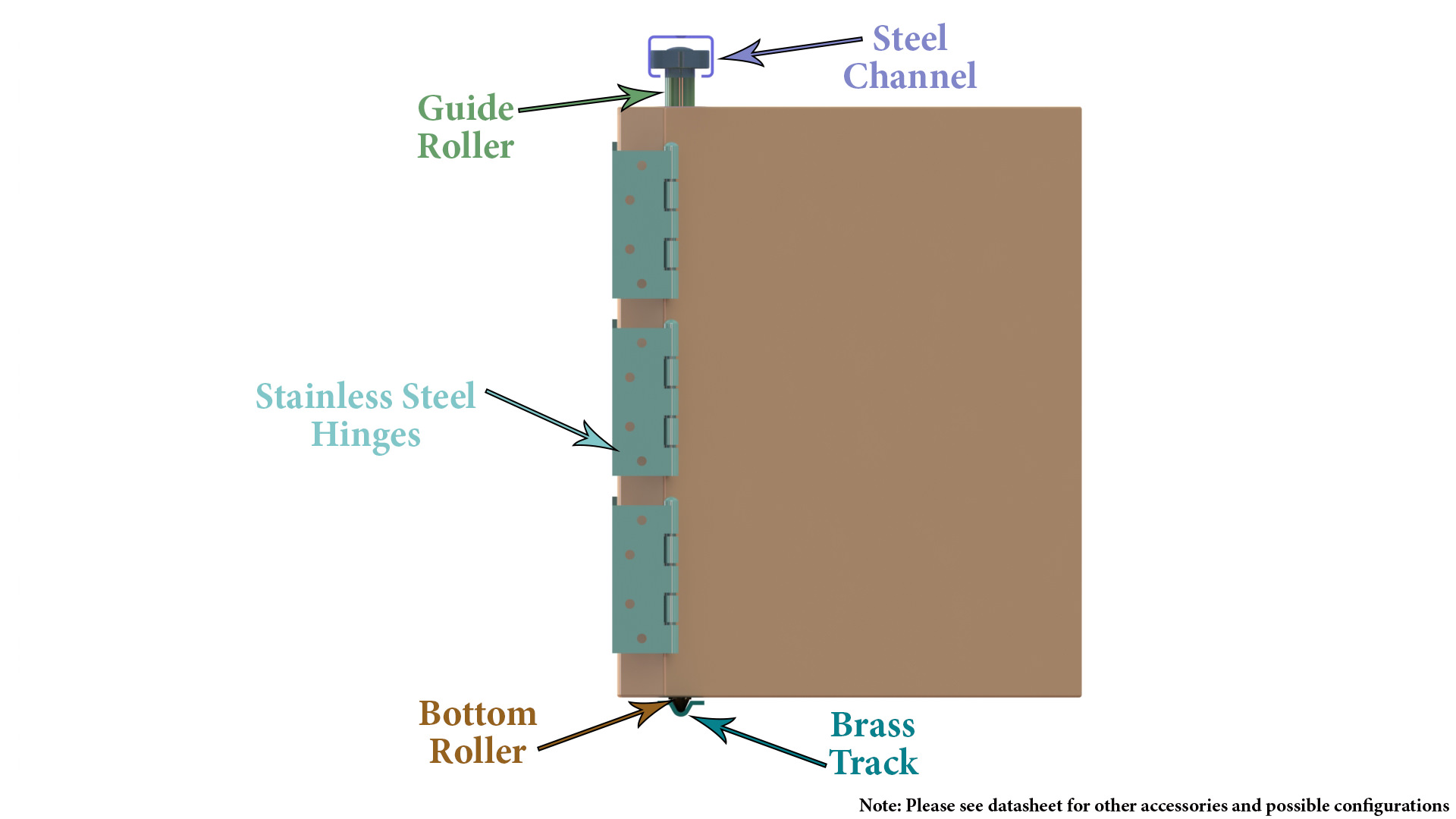

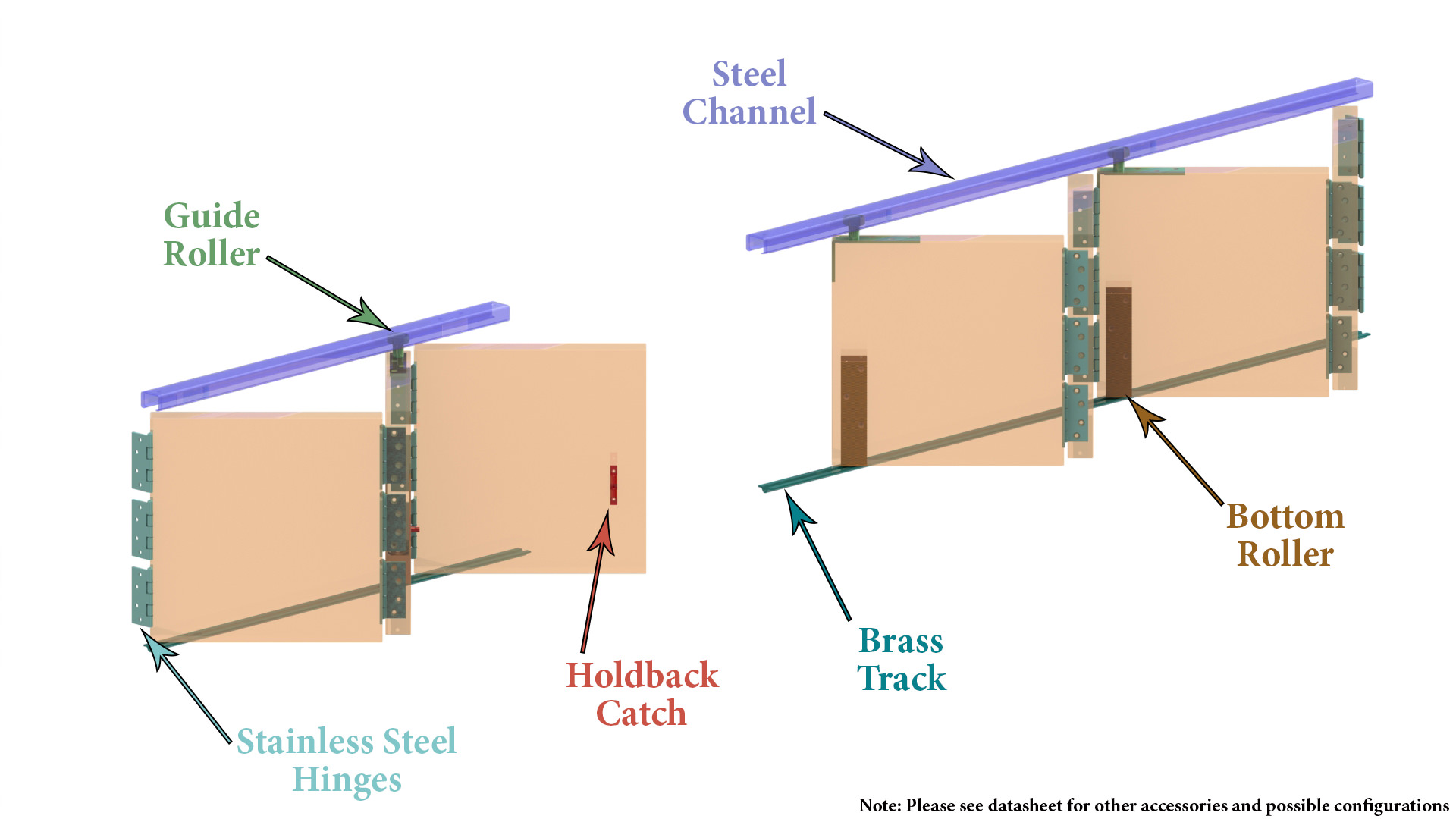

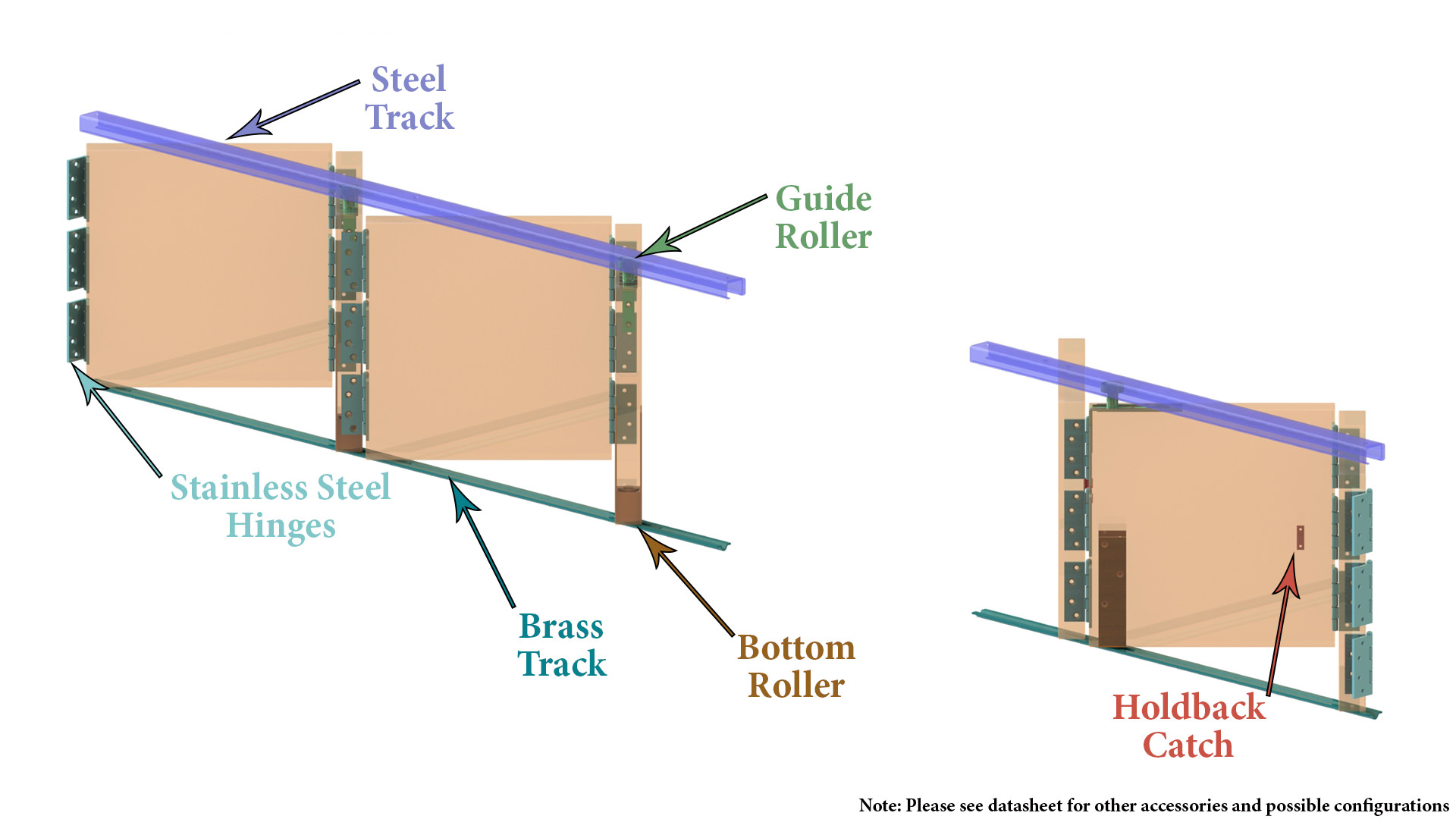

Bottom rolling folding system for internal timber doors up to 75kg

  • Foldaside 640 is ideal for when the overhead structure will not support the weight of a suite of doors
  • Up to 8 leaves may be hinged together stacking to either one or both sides of an opening, suitable for both odd and even suites of doors
  • Steel top track galvanised to BS EN 10346
  • Drilled and countersunk attractive brass bottom track
  • Bottom roller is supplied with silver and gold anodised aluminium cover plates
  • Nylon wheeled top guide provides smooth operation





TECHNICAL SPECIFICATIONS
Weight
75
Width
900mm
Thickness
44mm
Height
3600mm
Closure Type
Folding
Door Material
Timber
Fitting Position
Bottom Rolling
